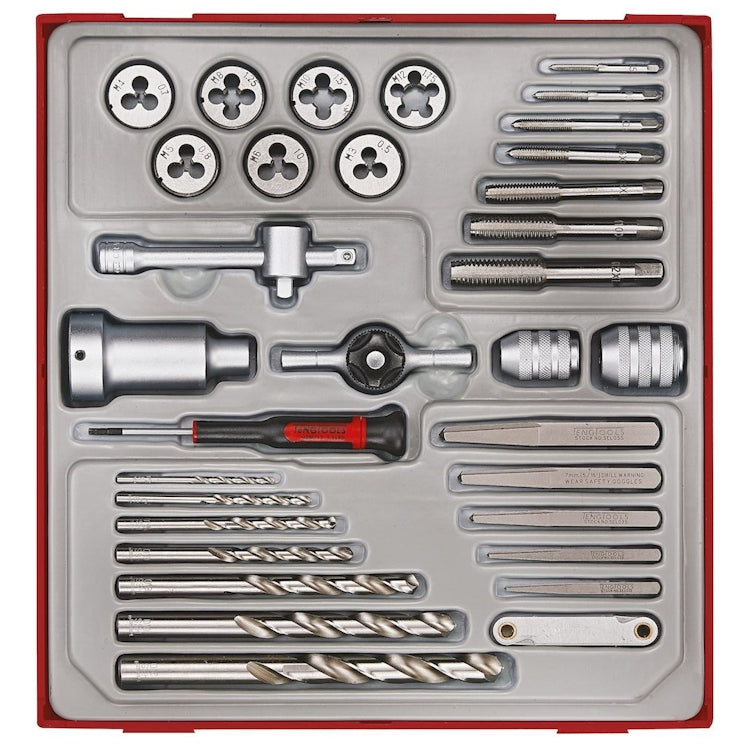

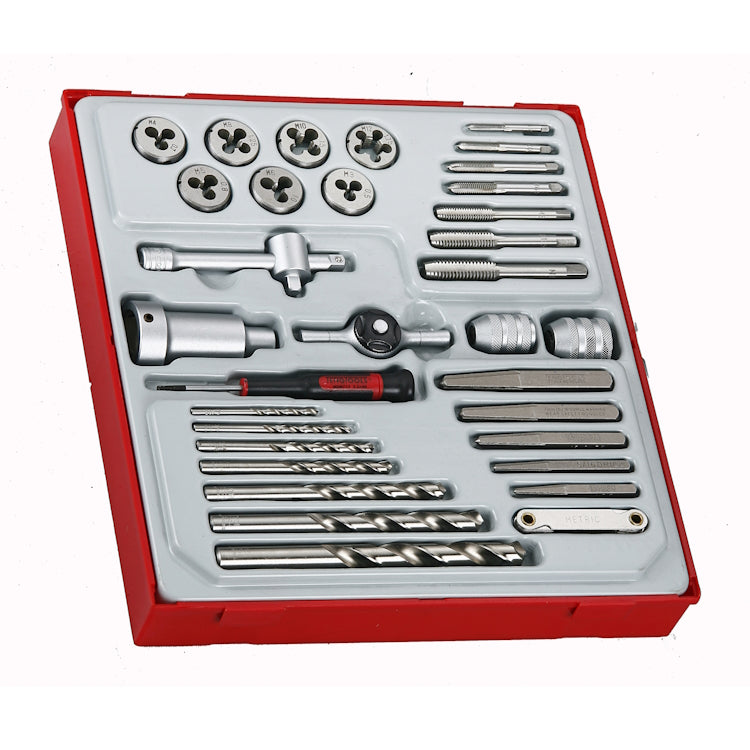

Designed for the repair of damaged threads covering M3 to M12.
Includes taps and dies with interchangeable chucks.
Screw extractors also included to give a complete set for repairing threads.
Various accessories including drill bits, a screw pitch gauge and mini palm ratchet.
Organised in a tool tray module size 2 (TT2).
No. of pieces: 34
Inlay material: PS
Width: 282mm
Depth: 265mm
Height: 50mm
Included:
1400M - Teng Ratchet 1/4" Drive Mini Palm
MDM712 - Teng Screwdriver Mini 2.5mm Hex
M140070 - Teng Die Chuck 1/4" Drive M5 to M12
M140071 - Teng Tap Chuck 1/4" Drive M3 to M8
M140072 - Teng Tap Chuck 1/4" Drive M5 to M12
M140021-C - Teng Extension Bar 1/4" Drive 4"
M380035-C - Teng Adaptor 3/8" F to 1/4" M
Teng Screw Extractors - #1, #2, #3, #4 and #5
Teng Dies - M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.25, M10x1.5 and M12x1.75
Metric Taps - 3, 4, 5, 6, 8, 10 and 12mm (1 of each)

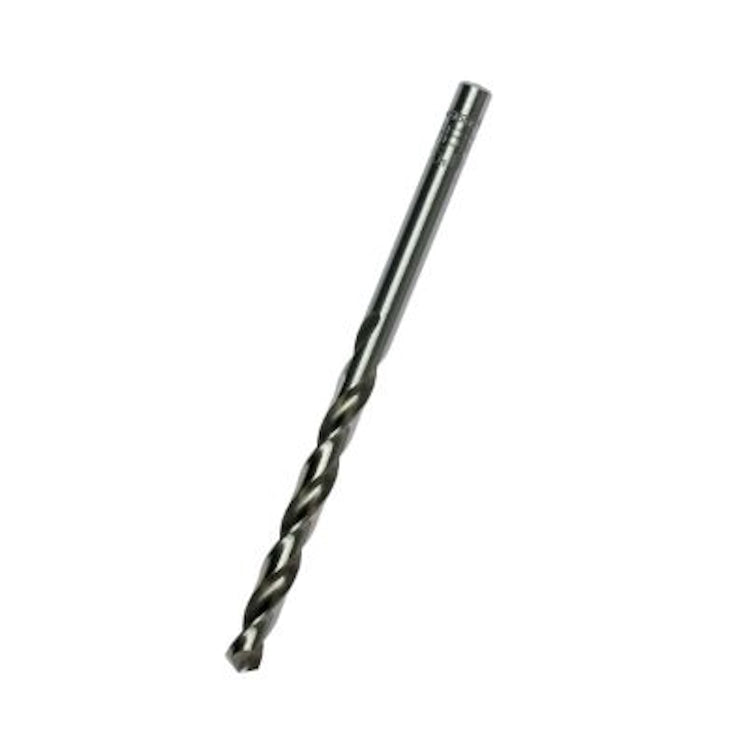

Teng Fully Ground Drill Bits - 2.5, 3.3, 4.2, 5.0, 6.8, 8.5 and 10.5mm (1 of each)
TGMMUNC - Teng Gauge Thread
